corner styled split winch manufacturer from China Deyuan China Fitting Co.,Ltd

Payment Terms:	T/T,L/C
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Delivery Date: 7 days

Packing: wooden case

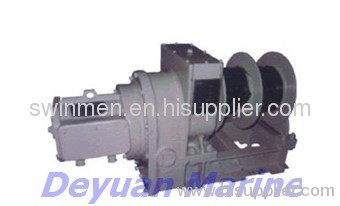

1.corner styled split winch
2.Working load:8~12KN
3.Supporting load:24-36KN
4.Rope Dia.:9~12mm

Mainly used for handling accommodation ladders upon the berthing of the vessel as well as handling the pilot ladders when the vessels enter the harbor.The axis of the motor and the reeling drum are laid out perpendicularly.

Electric winch
Working load	8~12KN		13~16KN
Supporting load	24~36KN		39~48KN
Rope Dia	Φ9~12mm		Φ13~15mm
Electric motor	380v,50hz	3.7kw	380v,50hz	5.5KW
	440v,60hz	4.0kw	440v,60hz	6.3KW
Duty factor	30min
Hoisting speed	5~10m/min
Pneumatic winch
Working load	8~12KN		13~16KN
Support load	24~36KN		39~48KN
Rope Dia	Φ9-12mm		Φ13~15mm
Pneumatic motor	Power	3.5~5.5ps	7ps
	Air consumption	3.5~5.5m3/min	7m3/min
Air press	0.5~0.7Mpa
Hoisting speed	3.5~10m/min
